Supplied as: only naked PCB.

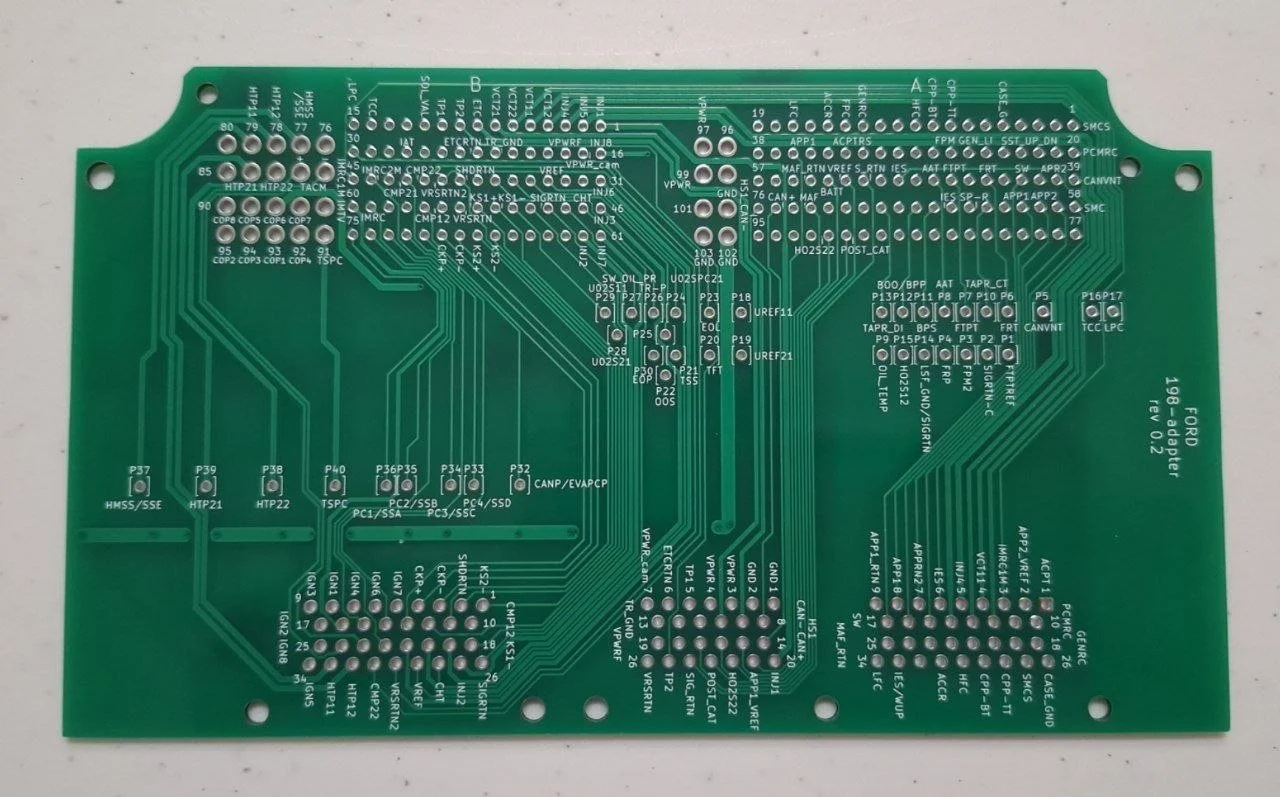

The Ford Mustang 198 Superseal adapter connects the 198-pin vehicle harness (103-pin and 95-pin sections) to 60-pin and 34-pin Superseal connectors.
- Ford Mustang 5.0L Coyote with the 198-pin PCM connector: intended application. Check the harness against the vehicle pinout and adapter schematics; a tested model-year range has not been established.
- 5.2L variants: injector, ignition and auxiliary functions differ in the reference pinouts. Plug-and-play compatibility is not confirmed.

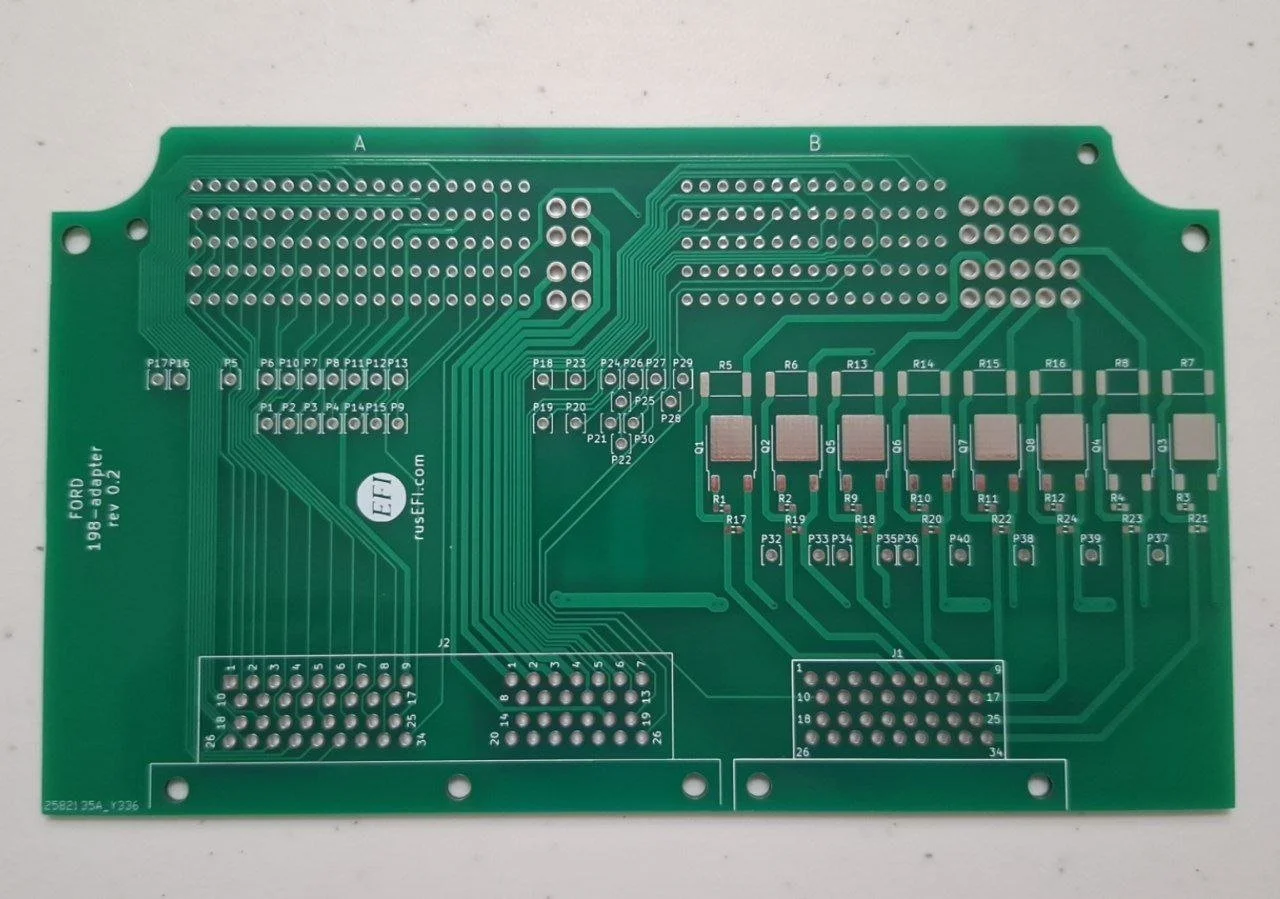

- Ignition: revision 0.2 includes eight ignition-driver circuits. The Superseal side carries logic-level ignition inputs; the vehicle side carries power outputs to the coil primaries when the drivers are populated. Check the assembly configuration against the schematics.
📄 schematics link | 🚗 vehicle pinout 🚗 | 🔌 adapter pinout 🔌
All rusEFI superseal adapters
