Supplied as: only naked PCB.

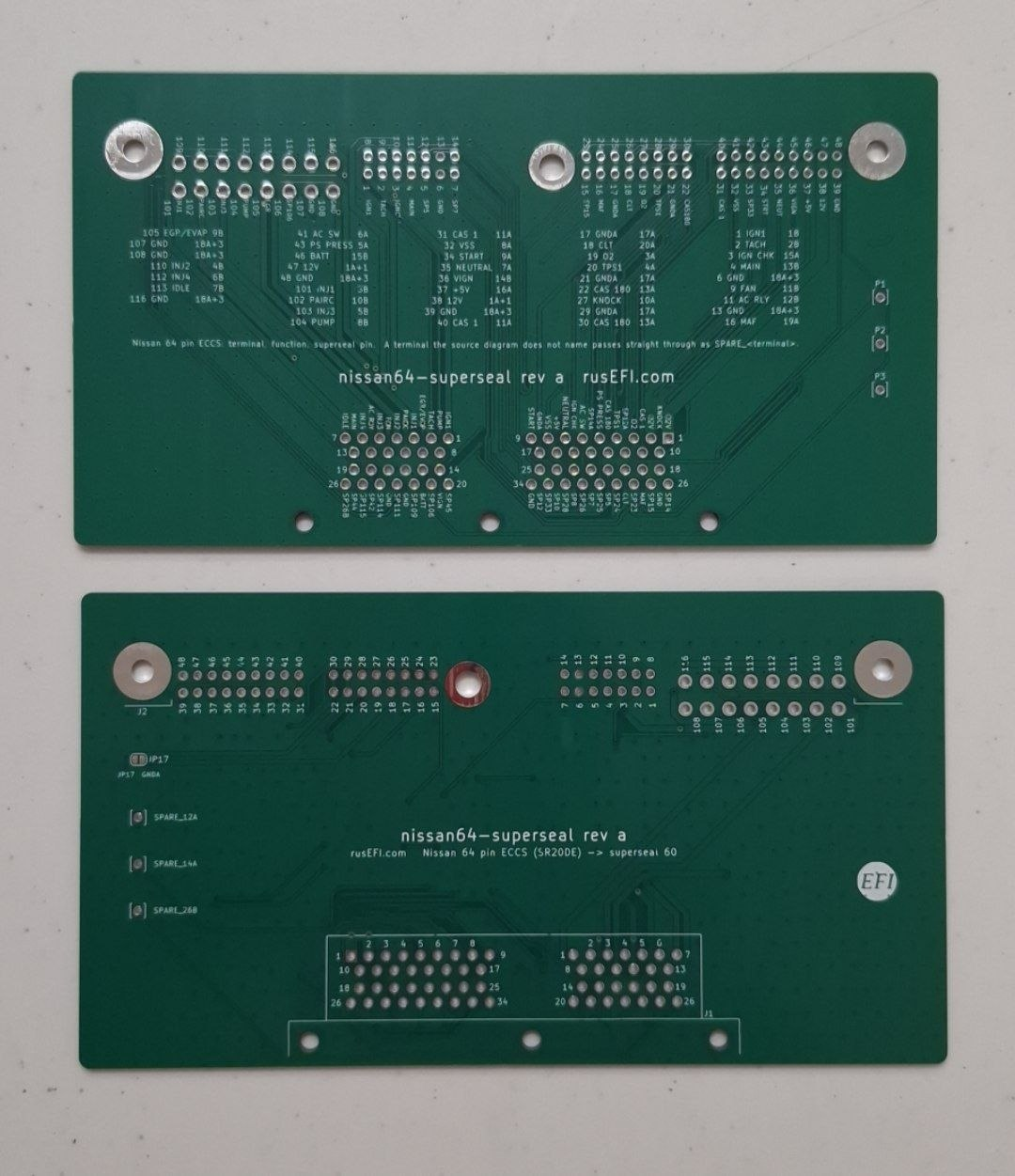

The Nissan 64 Superseal adapter connects the early 64-terminal E.C.C.S. vehicle connector (terminals 1–48 and 101–116) to a 60-pin Superseal connector (1A–34A and 1B–26B).
- 1993 Nissan Sentra 2.0L SR20DE: reference application. The wiring diagram includes manual/automatic transmission and equipment variants; check the exact harness against the pinouts and schematics. Vehicle operation has not been validated.
- Other Nissan applications with a 64-terminal connector: compatibility is not established by connector shape alone. Functions not identified in the reference are marked as such in the pinouts.
📄 schematics link | 🚗 vehicle pinout 🚗 | 🔌 adapter pinout 🔌
