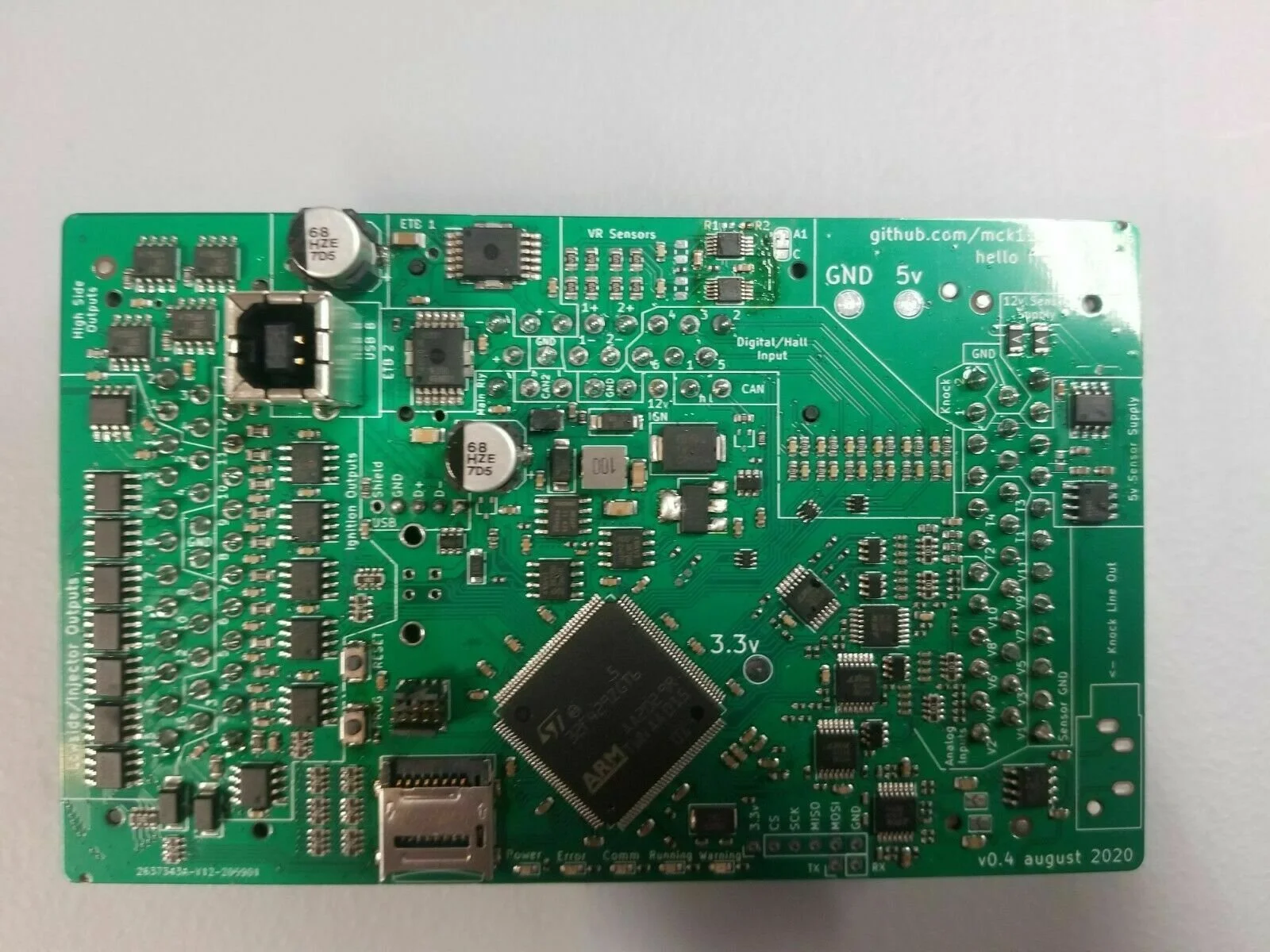

Proteus 12 Cylinder ECU (Legacy)

from US$800.00

Proteus is our older standalone ECU (2020) for engines up to 12 cylinders. It runs current rusEFI firmware, but for a new build this is a better fit:

  • rusEFI Huge, from $850: up to 12 cylinders fully sequential, with dual wideband controller, dual-channel knock input and baro sensor on the board.

All boards side by side: ECU comparison.

Buy Proteus if you already run one, need a spare, or your harness is built for Proteus or a Proteus adapter board.

On the board

  • 16 low-side outputs (injectors, relays, solenoids)

  • 12 ignition outputs, 5 V logic: smart coils, or external igniters for dumb coils

  • 4 high-side 12 V outputs

  • Dual electronic throttle, stepper idle or electronic wastegate control

  • Knock input

  • Inputs: 2 VR, 6 Hall, 11 analog + 4 temperature

  • Dual CAN bus, SD card logging

  • Ampseal connectors, 93 pins

Options: board only, with connector kit, or with partial crimped pigtail (15 cm wires).

Docs and support. Interactive pinout. Manual and firmware: wiki.rusefi.com/Proteus-Manual. Help comes from the community only: forum, Discord, Facebook group. One-on-one help is sold separately as Technical Support.

Shipping. From New Jersey, USA. In-stock orders usually ship within 5 business days.

Proteus is our older standalone ECU (2020) for engines up to 12 cylinders. It runs current rusEFI firmware, but for a new build this is a better fit:

  • rusEFI Huge, from $850: up to 12 cylinders fully sequential, with dual wideband controller, dual-channel knock input and baro sensor on the board.

All boards side by side: ECU comparison.

Buy Proteus if you already run one, need a spare, or your harness is built for Proteus or a Proteus adapter board.

On the board

  • 16 low-side outputs (injectors, relays, solenoids)

  • 12 ignition outputs, 5 V logic: smart coils, or external igniters for dumb coils

  • 4 high-side 12 V outputs

  • Dual electronic throttle, stepper idle or electronic wastegate control

  • Knock input

  • Inputs: 2 VR, 6 Hall, 11 analog + 4 temperature

  • Dual CAN bus, SD card logging

  • Ampseal connectors, 93 pins

Options: board only, with connector kit, or with partial crimped pigtail (15 cm wires).

Docs and support. Interactive pinout. Manual and firmware: wiki.rusefi.com/Proteus-Manual. Help comes from the community only: forum, Discord, Facebook group. One-on-one help is sold separately as Technical Support.

Shipping. From New Jersey, USA. In-stock orders usually ship within 5 business days.

Option:

Community Support only. rusEFI does not have technical support stuff,

If you buy this, you should be prepared to follow rusEFI development carefully and be interested in tinkering.

OFF ROAD USE NOTICE: items sold through rusEFI LLC including tuning products may be designed for off-road/race use only, and are not applicable for vehicles in states that require pollution controlled vehicles. California (CARB) & other states prohibit the sale or use of some aftermarket parts, including those that tamper with, modify or defeat emissions systems in any 1966 and newer vehicles. rusEFI LLC prohibits the use of these products on emission controlled vehicles. These parts are sold for OFF ROAD, RACE-ONLY, ground-vehicle use only in a controlled environment.

rusEFI LLC does not implicitly or explicitly confirm the legality of using any products it sells on public roads. Customers are solely responsible for ensuring all products purchased are used in a legal manner.
